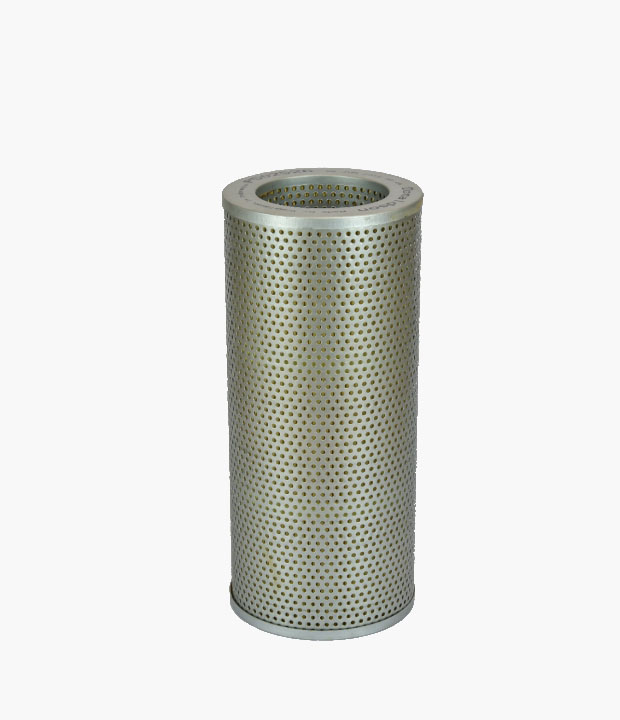

P502526

Description

Contact us and you will be satisfied with the discount (P502526)!

[Good price]

Place of Origin	China
Certification	ISO 9001:2015
Type	Cellulose
Filter Element	Stainless steel 304
Structure	Perforated support + stainless steel folding mesh
O-Ring	BUNA-N
Total Height	11.51 inches
Diameter of top	5.13 inches
Diameter of bottom	5.13 inches
Inner diameter	3.38 inches
Collapse Burst	110 psi
Efficiency Beta 2	9 microns
Efficiency Beta 75	21 microns
Filter direction	FOTI (Outside-In)
Beta Rating: B12	200
Operating Temp Min F	-62
Operating Temp Max F	592
Minimum Order Quantity	1
Packaging Details	Wooden box + carton + moisture-proof bag
Port Connection Type	NPT
Application field	Lubricating oil and hydraulic oil system
Packaging pcs	1

Our replacement P502526 is used to protect certain components in hydraulic systems. Installed upstream of the element to be protected in the medium pressure line. To filter out solid particles and colloidal substances in the working medium.

Effectively control the pollution degree of the working medium and make the components work normally. Donaldson hydraulic oil replacement filter element P502526 is mainly made of stainless steel woven mesh, sintered mesh, and iron woven mesh.

Because the filter materials it uses are mainly glass fiber filter paper, chemical fiber filter paper, and wood pulp filter paper. So it has high concentricity, high pressure tolerance, good straightness, and stainless steel material. Without any burrs, it guarantees the characteristics of long service life.

Its structure is made of single or multi-layer metal mesh and filter material. In specific use, the number of layers and the number of meshes that constitute the wire mesh are determined according to different conditions of use and uses.
