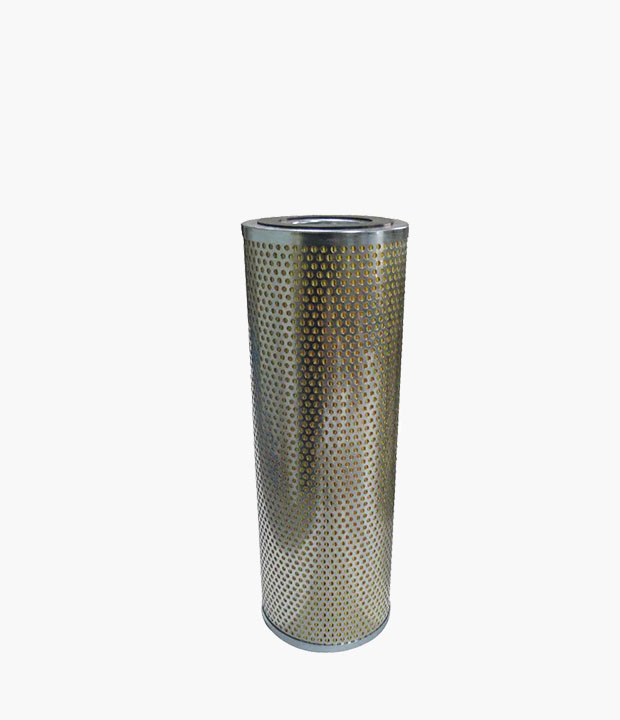

PH718-05-CN

Description

Contact us and you will be satisfied with the discount (PH718-05-CN)!

[Good price]

Our goods can be shipped anywhere in the world!

Place of Origin	China
Certification	ISO 9001:2015
Type	Hydraulic filter element / Pressure Line
Filter Element	Stainless steel 304
Structure	Perforated tube + glass fiber
Gasket Material	Viton
Total Height	18.02 inches
Diameter of top	6.01 inches
Diameter of bottom	6.01 inches
Weight	– kg
Filtration accuracy	– microns
Maximum Pressure Differential	150 Psi
Filter direction	FOTI (Outside-In)
Beta Ratio 1	2/25
Beta Ration 2	–
Operating Temp Min F	-50
Operating Temp Max F	200
Minimum Order Quantity	1
Filtration efficiency	99.99%
Packaging Details	Wooden box + carton + moisture-proof bag
Packaging pcs	1
Packaging L x W x H	7.2 inches x 7.2 inches x 21.2 inches

Inner diameter: 2.87 inches.

Our PH718-05-CN replacement filter cartridges have consistent filtration efficiency.

Supporting structure.
The support structure includes inner support and outer support. The inner support generally uses a punching tube, which is cheap and effective. We use patented surface treatment technology for it, which is higher solid and more corrosion-resistant, which can ensure that the replacement filter element can operate normally in a high-pressure environment. The inner support generally refers to a layer of epoxy resin mesh attached to the surface of the glass fiber filter material. Inferior epoxy resin mesh is easy to fall off and pollutes the quality of hydraulic oil. We have independently developed production equipment, using high-quality epoxy resin, which is not easy to fall off.
