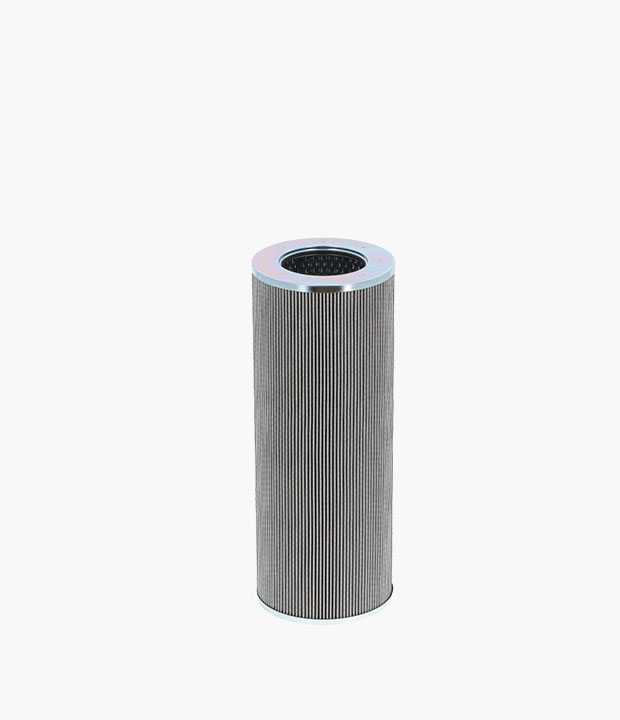

R928006045

  • Replace brand: Rexroth
  • SKU: R928006045
  • Type: Filter element
  • Material: Fiberglass
  • Bluslot No.: BLU-RH-R-16
SKU: R928006045 Category:

Description

Contact us and you will be satisfied with the discount (R928006045)!

[Good price]

Place of Origin China
Certification ISO 9001:2015
Type Hydraulic filterĀ element / Pressure Line
Filter Element Stainless steel 304
Structure Perforated tube + glass fiber
Gasket Material Viton
Total Height 400.0 mm
Diameter of top 154.0 mm
Diameter of bottom 154.0 mm
Inner diameter 89.0 mm
Filtration accuracy – microns
Maximum Pressure Differential ā€“ Psi
Filter direction FOTI (Outside-In)
Operating Temp Min F -39
Operating Temp Max F 239
Minimum Order Quantity 1
Filtration efficiency 99.99%
Packaging Details Wooden box + carton + moisture-proof bag
Packaging pcs 1
Condition New

The filter has resistance. The oil in the system will inevitably have a pressure drop when it flows through the filter.

The filter element and the flow rate are certain, the higher the filtration precision of the filter element, the greater the pressure drop. The flow rate is constant, the larger the filter area of the filter element, the smaller the pressure drop.

The greater the viscosity of the oil, the greater the pressure drop.

The pressure drop allowed by the filter element is the maximum pressure drop that the filter element can withstand without structural damage.

When working stably in high pressure systems. The filter element is also only subjected to the pressure drop of the oil there, not the pressure.

The pressure drop of the oil flowing through the filter is mostly determined by experiments and empirical formulas.

Bluate provides customization and production services for various hydraulic oil filter elements. If you are interested in our R928006045Ā replacement filters, please contact us.
