Replace 0075D100WHC

  • Replace brand: HYDAC
  • SKU: 0075D100WHC
  • Type: Filter element
  • Material: Fiberglass
  • Bluate No.: BLU-HD-XAS-12
SKU: 0075D100WHC Category:

Description

Contact us and you will be satisfied with the discount (0075D100WHC)!

[Good price]

Our goods can be shipped anywhere in the world!
Place of Origin China
Certification ISO 9001:2015

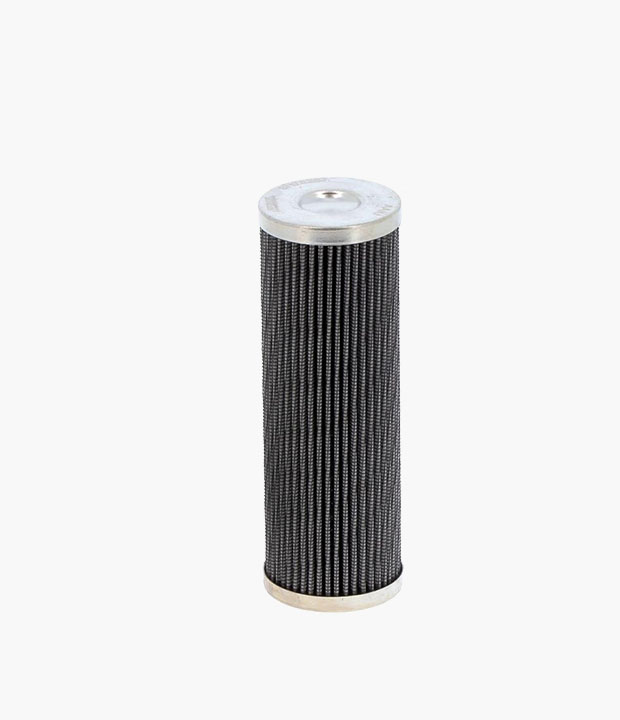

Type Hydraulic Filter ElementĀ / Pressure Line
Structure Perforated support + Pleated Microglass
Seal Material Buna (Nitrile)
Total Height 169.0 mm
Diameter of top 56.0 mm
Diameter of bottom 56.0 mm
Inner diameter 25.1 mm
Filtration accuracy106 100 micron
Filter direction FOTI (Outside-In)
Operating Temp Min F -35
Operating Temp Max F 345
Packaging Details Wooden box + carton + moisture-proof bag
Application field Lubricating oil and hydraulic oil system
Packaging pcs 1
Condition New
  • There are not only solid impurities and water, but also air in the hydraulic oil system. These impurities need to be removed by high-quality hydraulic filter element.
    • During the initial operation of the crossover pressure system, the air was not exhausted.
    • The air dissolved in the oil is released under low pressure.
    • The air inhaled when the pressure in the system is lower than atmospheric pressure.
    • The oil in the oil tank stirs violently, forming bubbles and being sucked into the system.

    Bluate is aĀ 0075D100WHCĀ replacement filter element manufacturer in China.
